BESTREACH - TELESCOPIC BELT CONVEYORS
Truck Loading BestReach Telescopic Boom Conveyors will transport items quickly, safely and efficiently by extending directly into the trailer without the need of support. The use of this unit will reduce load/unload times significantly whilst improving operator working conditions. • 50 kg capacity per linear metre (level). • 600mm & 800mm belt widths as standard with other widths available on request. • 30m/min belt speed. Variable speed drive available on request. • Top of belt height to suit specific applications.
FMH Conveyors BestReach Brochure EN



BESTCONNECT - MOBILE RECONFIGURABLE ROLLER CONVEYORS (PLUG & PLAY)
Driven Applications Designed to provide rapid assembly of conveyor solutions for changing workplaces. Systems can be easily configured and re-configured as required to suit your immediate requirements. With a simple single phase 240V power supply and latching connections the engineering requirement is minimal. • 75Kg capacity per linear metre (level). • 800 to 1100mm adjustable conveyor height. • 450, 600, 750 and 900mm typical conveyor widths. • Various systems building components available. • 240V or 110V 1ph supply. • 120Vdc on board. • Easily combined with BestFlex products for system building.
FMH Conveyors BestConnect Brochure EN

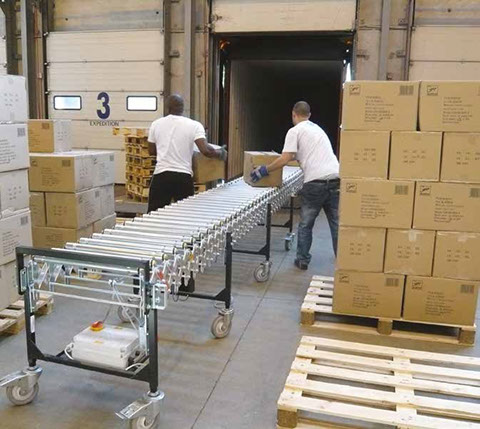

POWERFLEX - MOTORIZED FLEXIBLE CONVEYORS
Driven Applications Type PF15 Ideally suited for truck loading and unloading, distribution centres, packaging, mobile assembly lines, shipping and receiving. • 150Kg drive capacity per linear metre (level). • Castors diameter 150 mm x 50 mm. • Standard roller pitch 127 mm. Available options: 76 and 102 mm roller pitch. • Bright zinc plated rollers diameter 40 mm. • Speed regulation from 5 to 60 cm/sec. • 800 to 1100mm adjustable conveyor height. • 450, 600, 750 and 900 mm conveyor widths. • Available in any length to fit your applications. • Electrical connection single phase 240V. Type PF19 Built tough to handle high use applications. Ideally suited for truck loading and unloading, distribution centres, packaging, mobile assembly lines, shipping and receiving. • 150Kg drive capacity per linear metre (level). • Castors diameter 200 mm x 50 mm. • Standard roller pitch 127 mm. Available options: 76 and 102 mm roller pitch. • Bright zinc plated rollers diameter 50 mm. • Speed regulation from 5 to 60 cm/sec. • 724 to 946mm adjustable conveyor height. • 450, 600, 750 and 900 mm conveyor widths. • Available in any length to fit your applications. • Electrical connection single phase 240V.
FMH Conveyors PowerFlex Brochure EN



BESTFLEX - NESTAFLEX - GRAVITY FLEXIBLE CONVEYORS
Gravity Applications BestFlex Type BFR with Rollers Excellent for handling odd shaped boxes, bags and low grade cartons. • 220Kg capacity per linear metre (level). • Castors diameter 127 x 38 mm. • Standard roller picth 127 mm. Available options: pitch 76 and 102 mm. • Bright zinc plated rollers diameter 35 mm. • 762 to 1080mm adjustable conveyor height. • 450, 600, 750 and 900 mm conveyor widths. • Available in any length to fit your applications. BestFlex Type BF/200 with Skatewheels A proven performer for truckloading and unloading. Ideally suited for packaging, shipping and flexible assembly lines. The optional impact support section is available for high impact receiving applications. • 300 kg capacity per linear metre (level). • Castors diameter 127 x 38 mm. • Standard roller picth 127 mm. Available options: pitch 76 and 102 mm. • Zinc plated or plastic skatewheels diameter 48 mm. • 720 to 1000 mm adjustable conveyor height. • 450, 600, 750 and 900 mm conveyor widths. • Available in any length to fit your applications. FMH Conveyors BestFlex Brochure EN



BESTFLEX - MOBILE VEHICLE LOADERS MBL AND SVL
Dockless Loading BestFlex type MBL Mobile loaders type MBL are designed specifically for use in premises without a raised loading dock, which makes it ideal for loading vans and other smaller vehicles. Using this unit makes your vehicle loading/unloading operation faster, safer and more efficient, and helps you comply with manual handling regulations. • 50 kg capacity per linear metre. • 600mm belt widths as standard. • 20m/min belt speed. Variable speed drives are available on request. • Variable height at low level for manual handling or joining to another conveyor. • Variable tongue height for use in any vehicle type. BestFlex type SVL The mobile loader SVL has been designed to load small vehicles from either level access or dock levellers. Ideally suited for the parcel, postal and 3PL markets this units is easy to use and can be combined with other BestFlex, PowerFlex or BestConnect products to create a total loading solution. • 50kg/m load capacity. • 18-30m/min belt speed. • 600mm Belt Width. • Variable height to suit various vehicles. • Suitable for loading and unloading.
FMH Conveyors BestFlex Mobile Loaders EN
